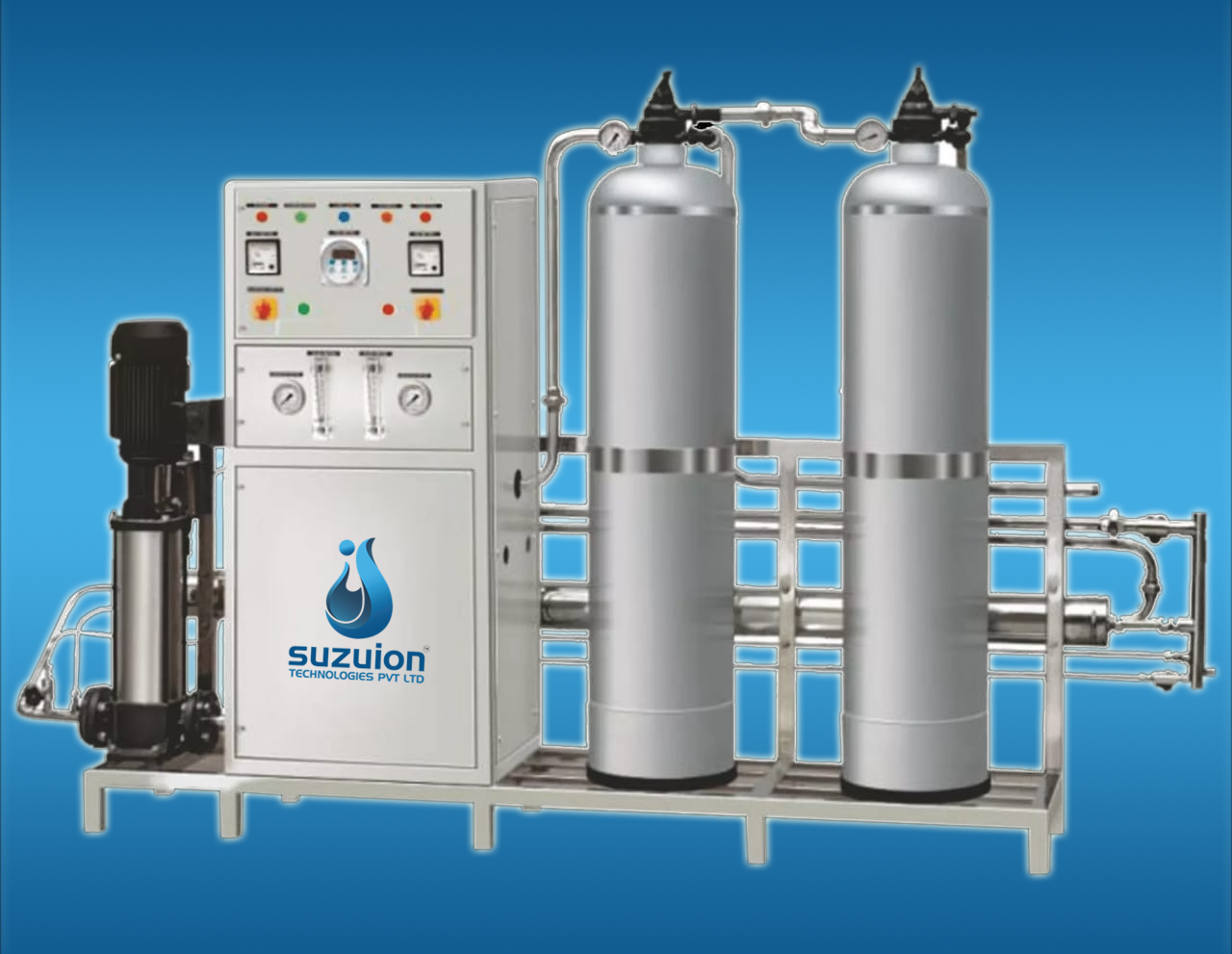

1000 LPH ALKALINE WATER IONIZER SUPPORT UNIT
Total Dissolved Solids : 1500 ppm [Max]
TDS mg/l : < 75 ppm
pH : 5.5 – 6.5s
Price : 2,70,000.00 + GST
Shipping Charges : Free
Quantity :
TECHNICAL DETAILS
Designed Raw Water Analysis
| Item | Parameter | |
| Total Dissolved Solids | 1500 ppm [Max] | |
| TREATED WATER PARAMETERS [EX-RO PLANT] | ||
| TDS mg/l : | < 75 ppm | |
| pH | 5.5 – 6.5 | |
| LIMITING CONDITIONS OF THE PLANT | ||
| OXIDISING ELEMENTS | NIL | |
| IRON | NIL | |
| OIL & GREASE | NIL | |
| WATER SOURCE | BOREWELL | |
| pH | 4 – 11 | |
| CHLORINE | NIL | |
| SDI | 3 (Max)e | |
| DESIGN PARAMETERS | ||
| FEED FLOW | 2200 LPH | |
| PERMEATE FLOW | 2200 LPH | |
| MAXIMUM INLET TDS | 1500 ppm | |
| PERMEATE TDS | < 50 ppm | |
| RECOVERY | 60% | |
| INLET PRESSURE | 6.0 Kgs/cm2 | |
| HP MOTOR RATING | 2.0 HP [2-22 Kw] | |
| POWER | 1-Phase, 220 V AC |
TECHNICAL DETAILS
| Item | Parameter | |
| CARTRIDGE FILTER [5 Micron] | 2 No | |
| NO. OF MEMBRANES | 4 | |
| MEMBRANE HOUSING | 2( Stainless Steel) | |
| NO. OF HOUSING | 2 | |
| HIGH PRESSURE PUMP [SS 2-22] | One (CRI/lubi) | |
| PRESSURE GAUGES [0-5 & 0-20] | One Each | |
| SKID [SS] | One | |
| ROF INDICATOR | Two | |
| CONDUCTIVITY INDICATOR [0-200 μs] | One | |
| INTERCONNECTING PIPEWORK | One Lot SS | |
| LP SWITCH [SS] | One | |
| STAINLESS STEEL Vessel 14-65 | 2 (Steel make) | |
| Tds ,meter online | 1 (Digital) | |
| Frame | 1.5 Inches Stainless Steel | |
| Pannel box | 1 | |
| Sand Chemical | 300 kg | |
| Carbon Chemical | 50 kg | |
| Pipework and Supply | SS | |
| 20. Multiport valve | 1.5 inches(genuine) Dosing System |
